Neo Electronics Co Limited

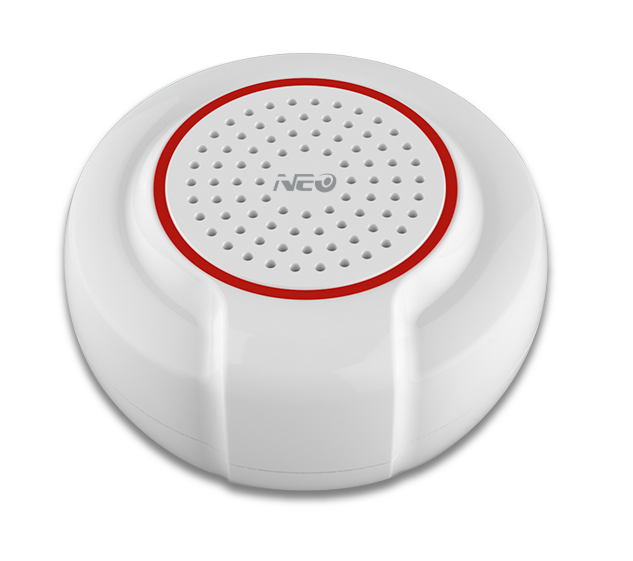

Siren Alarm

SKU: NEOEAB01Z

ZWave+

Quickstart

This is a Siren for XXXQFrequencyName. To run this device please make sure the internal battery is fully charged.

1) Disassemble the siren alarm and insert the battery into the siren alarm. Make sure the device is located within the direct range of the controller.
2) Set the controller into the learning mode (see main controller‘s operating manual).
3) Quickly, triple click the code button, LED light will flash red for 5 times.
4) Siren alarm will be detected and included in the Z-Wave network.
5) Wait for the main controller to configure the siren alarm.


Important safety information

Please read this manual carefully. Failure to follow the recommendations in this manual may be dangerous or may violate the law. The manufacturer, importer, distributor and seller shall not be liable for any loss or damage resulting from failure to comply with the instructions in this manual or any other material. Use this equipment only for its intended purpose. Follow the disposal instructions. Do not dispose of electronic equipment or batteries in a fire or near open heat sources.

Product Description

Siren alarm is an intelligent device that can be controlled remotely by the radio frequency. Siren alarm send messages via Z-Wave network to the Z-Wave main controller. In the ZWave network communications, Siren alarm can be connected to any Z-Wave main controller, Different countries or areas, the radio frequencyof the Z-Wave network is different.In the communication between the Siren alarm and Z-Wave main controller, the siren alarm can both send and receive messages. When press the code button of siren alarm, it will send message to the Z-Wave main controller, the Z-Wave main controller can display the on/off status of the siren alarm; when the siren alarm receives messages from theZ-Wave main controller, the siren alarm will be triggered. The siren alarm is battery powered, small and easily install. When sirenalarm is working, LED light will flash, and there will be alarm sound at the same time. The sound is not lower than 90 decibels.

Installation

Hardware Installation

- Cover installation
- Battery installation

Cover installation

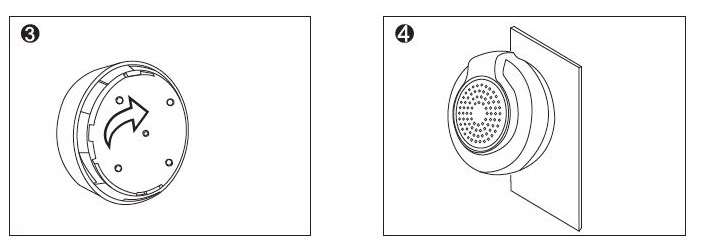

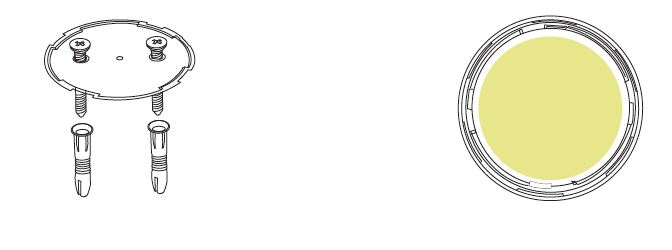

Fix the siren alarm with Screws or fix the siren alarm with sticker


Battery Installation


                Open the siren alarm                                                                  Install the battery

              Close the siren alarm                                                                  Installation example

Tips

1.When install the siren alarm, please avoid the noisy places.
2.Please install somewhere easy to find.
3.Do not install in a ventilated position to affect the effect of the siren alarm.
4.Do not install at a wet place to prevent the siren alarm from damaging.
5.When the siren alarms, it would sound and the led would flash red lights.
6.Association allows for direct communication between Z-Wave network devices. Main controller does not take part in such communication. Using this mechanism, siren alarm may communicate with other devices even when the main controller is damaged.

Product Usage

Battery Usage Tips

Battery life of the siren alarm is approximately 1years at factory default settings. The current battery level is displayed in the ZWave main controller. Red battery icon means the battery needs replaced.

Note: Siren alarm is battery powered. Using batteries other than specified may result in explosion. Dispose of properly, please observe environmental protection rules.

LED Color Indication

Blink 5 Times (1s Interval): Power on and Not Add in Z-Wave Network
Blink 5 Times (500msInterval): Press Button tripled, Adding siren in a Z-WaveNetwork or Send Node Info
Blink 5 Times (300msInterval): Power on and Already Add in a Z-Wave Network
Blink 1 Time: Press the Button Long Time, Reset the Siren to restore default settings
Turn on with rotation: Alarmton
Reset to factory default
1.Remove the device cover.
2.Make sure the sensor is powered.
3.Press and hold the button for 10 seconds, led will blink once.
4.Release the button.
Inclusion
Quickly, triple click the code button, LED light will flash red for 5 times.
Exclusion
Quickly, triple click the code button,LED light will flash red for 5 times.
NIF XXXNIF
Wakeup XXXWakeupDescription
Protection XXXProtection
FirmwareUpdate XXXFirmwareUpdate
SetAssociation XXXSetAssociation

Association Groups:

Group Number Maximum Nodes Description
1 5 Lifeline
2 5
Send Binary Switch Report to associated devices in this group.
3 5
Send Notification to associated devices in this group.

Configuration Parameters

Parameter 1: Configure Alarm Music Volume

This parameter defines the output volume when siren plays door bell music.
Size: 1 Byte, Default Value: 3

Setting Description
1 Low
2 Middle
3 High

Parameter 2: Configure Alarm Music Duration Time

This Parameter defines the alarm music duration time when siren receive an alarm sensor notification report or an alarm command from controller.
Size: 1 Byte, Default Value: 2

Setting Description
0 Siren Off
1 30 seconds
2 1 minutes
3 5 minutes
255 Siren on

Parameter 3: Configuring Door Bell Music Duration Time

This parameter defines the door bell music duration time when siren receives a door/window sensor notification report.
Size: 1 Byte, Default Value: 1

Setting Description
0 Siren Off
1 - 245 Time in seconds
255 Siren always on

Parameter 4: Configure Door Bell Music Volume

This parameter defines the output volume when siren plays alarm music.
Size: 1 Byte, Default Value: 1

Setting Description
1 Low
2 Middle
3 High

Parameter 5: Configure Alarm Music Index

This parameter defines the alarm music index for siren play different music when alarm occurs
Size: 1 Byte, Default Value: 10

Setting Description
1 - 10 Different Sound

Parameter 6: Configure Door Bell Music Index

This parameter defines the door bell music index for siren play different music when alarm occurs.
Size: 1 Byte, Default Value: 9

Setting Description
1 - 10 Different Sound

Parameter 7: Configure Default Siren On Mode

This parameter defines the default music index, volume and the duration time for siren on. This parameter can be selected between ALARM MUSIC and DOOR BELL MUSIC.
Size: 1 Byte, Default Value: 1

Setting Description
1 Siren will select ALARM MUSIC MODE to play music
2 Siren will select DOOR BELL MUSIC MODE to play music

Parameter 8: Configure Alarm Led Enable

This parameter defines the default led enable status when siren is on for ALARM MUSIC MODE.
Size: 1 Byte, Default Value: 1

Setting Description
0 LED will be disable
1 LED will be enable

Parameter 9: Configure Door Bell Led Enable

This parameter defines the default led enable status when siren is on for DOOR BELL MUSIC MODE.
Size: 1 Byte, Default Value: 0

Setting Description
0 LED will be disable.
1 LED will be enable

Technical Data

Dimensions 70 x 68 x 31 mm
Weight 50 gr
Hardware Platform ZM5202
EAN 6924715900513
IP Class IP 20
Device Type Siren
Generic Device Class Binary Switch
Firmware Version 02.5e
Z-Wave Version 04.26
Z-Wave Product Id 0x0258.0x0003.0x1088
Frequency Europe - 868,4 Mhz
Maximum transmission power 5 mW
EuropeSiren
