Foxx Project

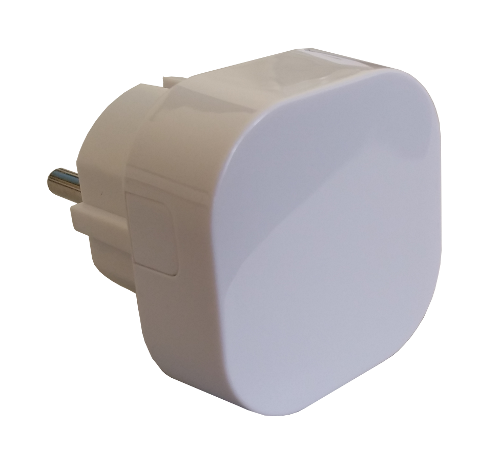

Z-Wave Extender
SKU: FOXEEXTENDER
Quickstart
This is a
A single click on the Z-Wave switch will confirm Inclusion and Exclusion.
Important safety information
Please read this manual carefully. Failure to follow the recommendations in this manual may be dangerous or may violate the law. The manufacturer, importer, distributor and seller shall not be liable for any loss or damage resulting from failure to comply with the instructions in this manual or any other material. Use this equipment only for its intended purpose. Follow the disposal instructions. Do not dispose of electronic equipment or batteries in a fire or near open heat sources.Product Description
This device take existing Z-WAVE signal, repeat and send it to a longer range where it is too far away for the controller (supporting FLiRS devices). Due to a special antenna amplifier the operating range will be up to 100 meters when installed correctly.
Installation
Plug the edvice into a free plug socket.
The LED will blink as long the deivce is not included into a Z-Wave network.
Note: For indoor use only!
Product Usage
After inclusion the LED will stop to blink. The extender is a passive device, that only extends your Z-Wave network"s range.
| Reset to factory default | XXXResetDescription |
| Inclusion | Single click on the program switch. |
| Exclusion | Single click on the program switch. |
| NIF | Single click on the program switch. |
| Wakeup | XXXWakeupDescription |
| Protection | XXXProtection |
| FirmwareUpdate | XXXFirmwareUpdate |
| SetAssociation | XXXSetAssociation |
Association Groups:
| Group Number | Maximum Nodes | Description |
|---|---|---|
| 1 | 5 | Lifeline |
Technical Data
| Dimensions | 0.0460000x0.0460000x0.0580000 mm |
| Weight | 40 gr |
| EAN | 1220000013247 |
| Firmware Version | 01.06 |
| Z-Wave Version | 03.43 |
| Z-Wave Product Id | 0086.0004.0025 |
| Frequency | Europe - 868,4 Mhz |
| Maximum transmission power | 5 mW |
